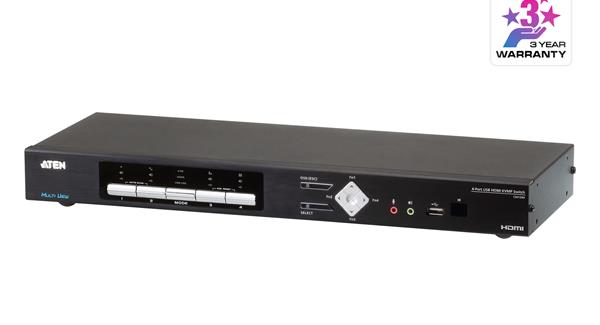

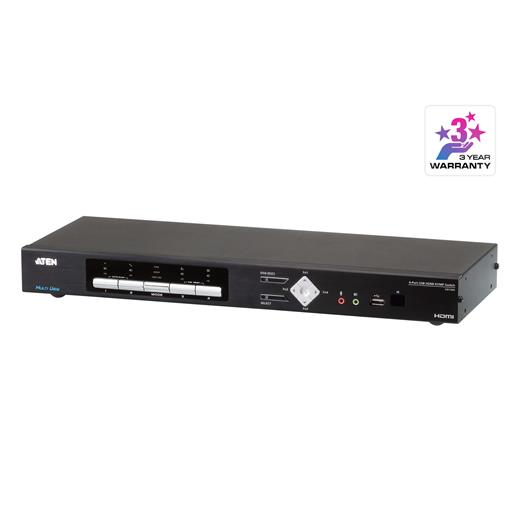

Aten-Cm1284 4-Port Usb Hdmı Multi-View Kvmp™ Switch
ATEN

Aten-Cm1284 4-Port Usb Hdmı Multi-View Kvmp™ Switch

Favorilere Ekle Fiyatı Düşünce Haber Ver Yazdır Daha ucuzunu buldum

Stok Kodu: 2344-187-23788

66.070,61 TL +kdv
Yarın kargoda
Kargo Bedava

  • Multi-view console controls up to four video sources on one screen with display modes including Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP)
  • Features dual output on console side – a multi-view output and a full screen output
  • Easily resizes and / or reposition any PiP or PbP to suit users’ viewing needs
  • System configuration via front panel, OSD, IR Remote, and RS-232 commands – display mode and port selection
  • Supports superior video quality – Up to 4K (4096 x 2160 @ 30 Hz)
  • Drop down menu – edit display windows and other functions with the mouse and on-screen control panel
  • Computer selection via front panel pushbutton and hotkey, mouse, and the serial commands*
  • Boundless Switching – Simply moves the mouse cursor across windows to switch to other video sources
  • Video DynaSync™ özelliği - Portlar arasında geçişlerde görüntünün optimize edilmesini sağlar. Sistem açılışlarında görüntüde yaşanabilecek olası problemlerin minimize edilmesini sağlar.
  • EDID Expert™ – Selects optimum EDID settings for smooth power- up, high-quality display and use of the best video resolution across different screens
  • DCC (Daisy Chain Control) – Controls up to 3 additional CM1284 units from a single console
  • Cascade up to 2 levels – Controls up to 16 computers (with up to 4 x 4 Multi-view mode)
  • HDCP 1.4 compliant
  • Console keyboard emulation / bypass feature that support most multimedia keyboards
  • Console mouse port emulation / bypass feature that supports most mouse drivers and multifunction mice
  • Independent switching for USB peripheral port, audio function and KVM switch focus
  • Power on detection
  • Auto Scan feature
  • Firmware upgradable via computer’s USB port
  • Full bass response provides a rich experience for 2.1 channel audio
  • Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
  • Hot-pluggable
  • Supports keyboard combinations via emulation (for Sun / Mac)**

    Note:
    *Mouse port switching is only workable under mouse emulation mode and is for 3-key USB wheel mouse only
    **PC keyboard combinations emulate Mac keyboard. Mac keyboard only work with their own computers



Computer Connections 4
Port Selection Pushbuttons, Hotkeys, IR Remote Control, On-Screen Display(OSD), RS-232 Commands
Connectors
Console Ports 2 x USB Type A Female
2 x HDMI Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front panel,1 x rear panel)
2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
2 x RJ-45
KVM (Computer) Ports 4 x USB Type B Female (White)
4 x HDMI Female (Black)
4 x 3.5mm Audio Jack Female (Green)
4 x 3.5mm Audio Jack Female (Pink)
Power 1 x IEC320 Jack
USB Hub 2 x USB 2.0 Type A Female (1 x front panel; 1 x rear panel)
Switches
Selected 11 x Pushbuttons
LEDs
KVM 4 (Orange)
Audio 4 (Green)
USB 4 (Green)
Emulation
Keyboard / Mouse USB
Video 4096 x 2160 @ 30 Hz
Scan Interval 5, 10, 15, 30, 60, 90 seconds (default: 5 seconds)
Maximum Input Power Rating 100-240 VAC; 50/60 Hz; 1A
Power Consumption AC110V:16.0W:101BTU
AC220V:14.8W:95BTU
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0-95% RH, Non-condensing
Physical Properties
Housing Metal
Weight 2.46 kg ( 5.42 lb )
Dimensions (L x W x H) 43.72 x 16.40 x 4.40 cm
(17.21 x 6.46 x 1.73 in.)



Package Contents

  • 1x CM1284 4-Port USB HDMI Multi-View KVMPTM Switch
  • 4x USB HDMI Cables
  • 1x Power Cord
  • 1x IR Remote Control
  • 1x Rack Mount Kit
  • 1x User Instructions
