• Hardware
• Compact and slim design for space utility optimization
• Provides a FPGA graphics processor for better image quality and enhanced fps (frames per second) throughput for crisp video display response
• Provides over-IP capability to switches that do not have built-in over-IP functionality*
• Local console provides USB keyboard and mouse support
• A mini USB port on the front panel serves as a Laptop USB Console (LUC) port
• Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
• Dual Power Supply for power backup
• Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
• Virtual Media support**
• High video resolution – up to 1920 x 1200 @ 60Hz for both local and remote consoles
• Audio support – microphone and speakers are supported on the local and remote console

* Compatible KVM Switch: ATEN DVI Single Link KVM Switches
** Some of the CN9600s features may not be supported, depending on the functionality of the cascaded KVM switch. (For example, some switches do not support.)

• Management
  • Complies to the RS-232 DTE/DCE standards for serial control
  • Up to 64 user accounts – up to 32 users can simultaneously share control
  • Console access right management
  • End session feature – administrators can terminate running sessions
  • Event logging and Windows-based Log Server support
  • Event Logging – the CN9600 can record all events that take place on it and write them to a searchable database
  • Supports instant notification of critical system events via email, SNMP trap and Syslog
  • Firmware upgradable via
  • Access the CN9600 via a built-in serial viewer, or via third-party software (such as PuTTY) for Telnet and SSH sessions
  • Out of Band support – access the CN9600 through its serial port using a dial-up connection
  • Port Share Mode allows multiple users to gain access to a server simultaneously
  • Local/Remote Share Mode conveniently grants shared or exclusive console privilege
  • Integration with ATEN Management Software
  • Integration with ATEN Video Session Recording Software
  • Supports ATEN KVM over IP Console Station ( /  /  / )
  • DDNS – allows mapping of a dynamic IP address assigned by a DHCP server to a host name
  • Supports export/import of user account and configuration settings
  • Supports permission-controlled browser operation
  • Supports IPv6
• Easy-to-Use Interface
  • Browser-based and AP GUIs offer a unified multilanguage interface to minimize user training time and increase productivity
  • Multiplatform client support (Windows, Mac OS X, Linux, Sun)
  • Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
  • Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package requirements
  • Full-screen or sizable and scalable Virtual Remote Desktop
  • Magic Panel with configurable function for quick launch
• Advanced Security
  • Smart Card/CAC Reader support
  • External authentication support: RADIUS, LDAP, LDAPS and MS Active Directory
  • Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users logging in from browsers
  • Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4 or Random for independent keyboard/mouse, video, and data encryption
  • Supports IP/MAC Filter
  • Supports password protection
  • Private CA
• Virtual Media
  • Virtual media enables file applications, OS patching, software installation and diagnostic testing
  • Works with USB-enabled servers at OS and BIOS level
  • Supports USB 1.1 and USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives, folders and ISO images
• Virtual Remote Desktop
  • Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth, threshold and noise settings can be adjusted for compression of the data bandwidth in low bandwidth situations
  • Full-screen video display or scalable video display
  • Message Board for communication among remote users
  • On-screen keyboard with multilanguage support
  • Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
  • Supports Exit Macros
  • BIOS-level access

•

• Package Contents

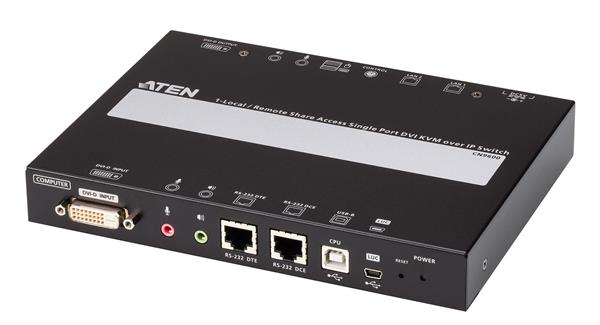

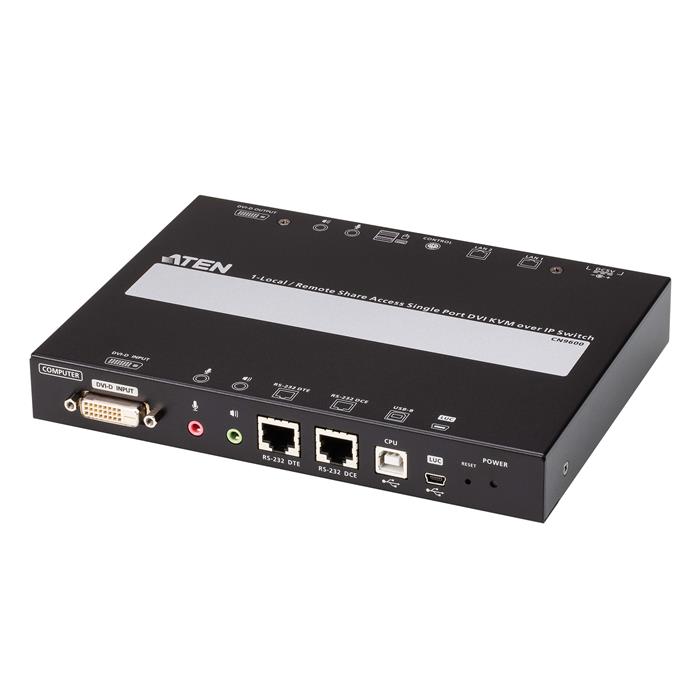

  • 1x CN9600 DVI KVM over IP Switch
  • 1x KVM Cable (DVI-D, USB, Audio; 1.8 m/6 ft)
  • 1x USB Cable (1.8 m/6 ft)
  • 1x Power Adapter
  • 1x Mounting Kit
  • 1x User Instructions
