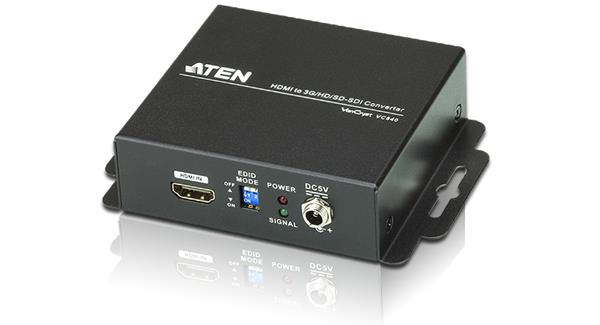

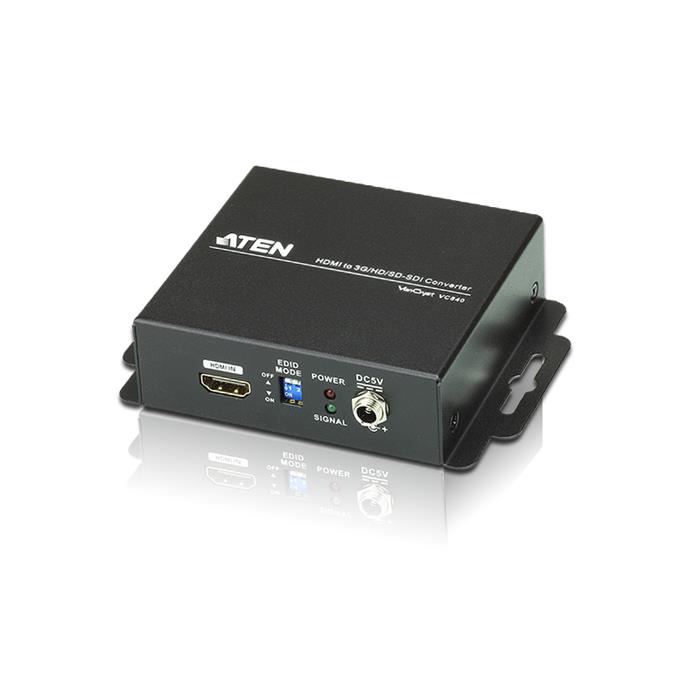

Aten-Vc840 Hdmı To 3G-Sdı/Audio Converter
ATEN

Aten-Vc840 Hdmı To 3G-Sdı/Audio Converter

Favorilere Ekle Fiyatı Düşünce Haber Ver Yazdır Daha ucuzunu buldum

Stok Kodu: 2437-187-24026

9.610,96 TL +kdv
Yarın kargoda
Kargo Bedava

  • Converts an HDMI input signal to 3G/HD/SD-SDI formats in real time while avoiding transformation loss for both audio and video signals
  • Supports additional stereo audio and coaxial digital audio
  • HDMI (Deep Color)
  • LED indication of power and signal status
  • Supports an SDI distance of up to 90M (3G-SDI), 150M (HDSDI) or 300M (SD-SDI) of RG6
  • Supported SDI formats:
    • SD-SDI (SMPTE 259M, up to 270Mbps)
    • HD-SDI (SMPTE 292M, 296M, up to 1.485Gbps)
    • 3G-SDI (SMPTE 424M, 425M level A, up to 2.97Gbps)
  • Video Support:
    525i@59.96, 625i@50
    720p@50/59.94/60
    1080i@50/59.94/60
    1080p@23.97/24/25/29.97/30/50/59.94/60
  • Supports 8 audio channels @ 48kHz rate
  • Offers 2 low-jitter SDI outputs for dual display
  • Features automatic detection of 3G/HD/SD-SDI signals
  • Reclocking SDI signals for cascading and thus longer transmission
  • Locking power connector for secure communications
  • Selectable settings and learning mode



Video Input
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 ?
Max. Distance 3m at 1920*1080@60 (4:4:4)
Video Output
Interfaces 2 x BNC  (Gold)
Impedance 75 ?
Video
Max. Data Rate 2.97  Gbps
Max. Pixel Clock 148.5 MHz
Supported Resolutions NTSC@59.96Hz, PAL@50 Hz;
720p@50/59.94/60 Hz;
1080i@50/59.94/60 Hz;
1080p@23.97/24/25/29.97/30/50/59.94/60 Hz
Max. Distance 90m  (3G-SDI); 150m (HD-SDI); 300m (SD-SDI)
Audio
Output Analog: 2 x RCA  (Red/White)
Digital: 1 x RCA  (Yellow)
SDI Formats SD-SDI (SMPTE 259M, up to 270  Mbps)
HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps)
3G-SDI (SMPTE 424M, 425M level  A, up to 2.97  Gbps)
EDID Settings EDID Mode: Learn
Connectors
Power 1 x DC Jack
Power Consumption DC5V:3.225WBTU
Environmental
Operating Temperature 0 - 40 ºC
Storage Temperature -20 - 60 ºC
Humidity 20 - 90% RH,  Non-Condensing
Physical Properties
Housing Metal
Weight 0.29 kg ( 0.64 lb )
Dimensions (L x W x H) 12.20 x 10.70 x 3.04 cm
(4.8 x 4.21 x 1.2 in.)
