ATEN

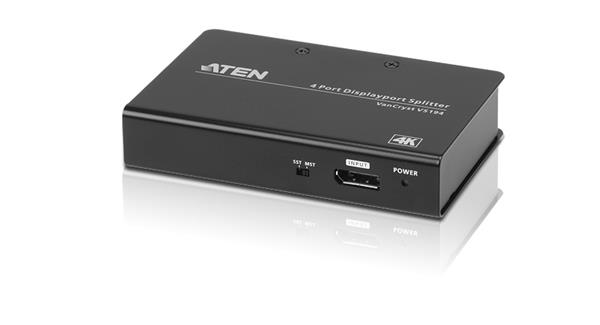

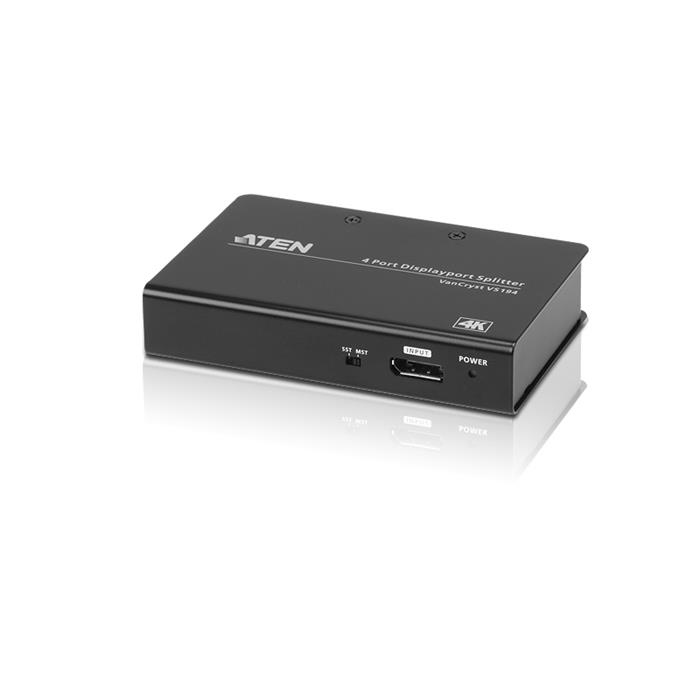

Aten-Vs194 4-Port 4K Displayport Çoklayıcı≪Br≫ 4-Port 4K Displayport Splitter

Stok Kodu: 2425-187-23959

8.313,52 TL +kdv
Yarın kargoda
Kargo Bedava

  • Connects one DisplayPort source to four DisplayPort monitors
  • Supportsa; 1.3
  • Supports resolutions up to 4096 x 2160 / 3840 x 2160 @ 60 Hz
  • Supports/ Extend Mode and SST/ Split Mode*
    MST/ Extend Mode:
    Extend a video source across 2/4 displays with a maximum resolution of 4K.
    SST/ Split Mode:
    Duplicate a single video source to 2/4 displays with a maximum resolution of 4K on each monitor
  • Supports Linkrate: HBR2 (High Bit Rate 2)
    Note:
    * The /VS194 will bypass Mode during SST Mode and will detect the resolution of the monitor connected to port 1.



Video Output
Interfaces 4 x DisplayPort Female (Black)
Video Input
Interfaces 1 x DisplayPort Female (Black)
Video
Compliance DP 1.2a; HDCP 1.3
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz
Max. Data Rate 21.6 Gbps (5.4 Gbps per lane)
Connectors
Power 1 x DC Jack
Power Consumption DC5V:3.36W:44BTU
Environmental
Operating Temperature 0-40 °C
Storage Temperature -20 - 60 °C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.33 kg ( 0.73 lb )
Dimensions (L x W x H) 12.50 x 8.00 x 2.50 cm
(4.92 x 3.15 x 0.98 in.)
