Assmann

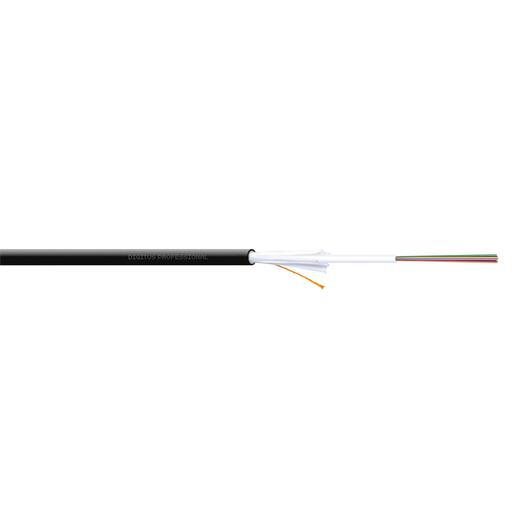

Dk-39041-U İç Mekan Fiber Optik Kablo 4 Core A/I-Dq (Zn) Bh 9/125? Os2, Cpr Dca, Lszh
Stok Kodu: 2410-424-24110
- LSZH – low smoke zero halogen
- UV-resistant
- Longitudinaly and laterally water-resistant
- Glass yarn armoured
- Non-metal rodent protection
- Metal free
- Attenuation at 1310nm : ? max. 0.34 dB/km (before cabling) ; ? max. 0.36 dB/km (after cabling)
- Attenuation at 1550nm: ? max. 0.21 dB/km (before cabling) ; ? max. 0.22 dB/km (after cabling)
- Attenuation at 1625nm : ? max. 0.23 dB/km (before cabling) ; ? max. 0.25 dB/km (after cabling)
- Zero Dispersion Wavelength : 1302 ~ 1324 nm
- Zero Dispersion Slope : ? 0.092 ps/nm 2 x km
- PMD Link value ( M= 20 cables Q= 0.01%) max. PMDQ : 0.2 ps/?km
- Cable Cutoff Wavelength (?cc) : ? 1260 nm
- Macro bending Loss (100 turns ; ?50nm) at 1550 nm : ? 0.05 dB
- Macro bending Loss (100 turns ; ?50nm) at 1625 nm : ? 0.10 dB
- Mode Field Diameter at 1310nm : 9.2 ± 0.4 µm
- Cladding diameter : 125 ± 1 µm
- Core/ clad concentricity error : ? 0.6 µm
- Cladding Non-Circularity : ? 1.0 %
- Proof stress : ? 0.69 Gpa
- Fiber count (OS2 G.652D) : 2-12 pc
- Max. number of loose tube : 1 pc
- Fiber number per tube : 2 - 12 pc
- Loose tube : 2.0 ± 0.2 mm
- Outher sheath material : LSZH, CPR Dca, EN 50575: 2014+A1: 2016
- Cable outer diameter : 6.5 ± 0.5 mm
- Max. allowable pulling force : 1400 N
- Crush resistance : 1000/200 N/100mm
- Temperature range : transport and storage : - 40°C to + 70°C ; installation : - 40°C to + 60°C ; operation : - 40°C to + 70°C
- Min. bending radius : installation : 20 x OD ; operation : 10 x OD
- Application: universal
- Cable jacket: LSOH
- Cable type: U-DQ (ZN) BH X E 9/125µm
- Color cable: black
- Fiber class: OS2
- Fiber diameter: 9/125µ
- Mode: Singlemode
- Number of fibers: 4
