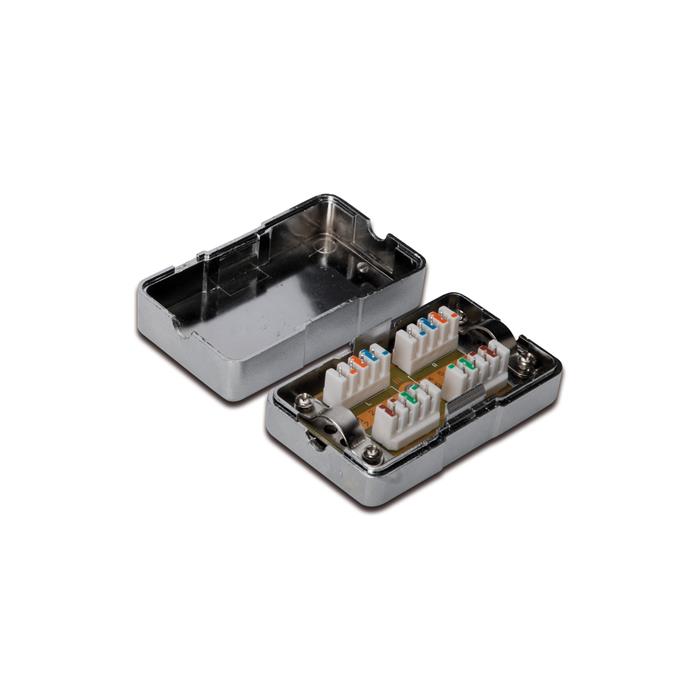

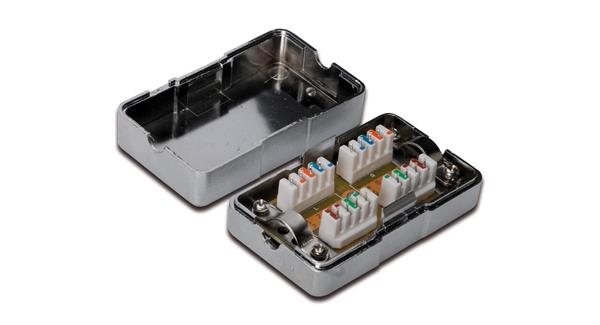

Dn-93903 Digitus Cat 6 Kablolara Ek Yapmak İçin Kutu, Lsa, Ekranlı/Zırhlı
Digitus

Dn-93903 Digitus Cat 6 Kablolara Ek Yapmak İçin Kutu, Lsa, Ekranlı/Zırhlı

Favorilere Ekle Fiyatı Düşünce Haber Ver Yazdır Daha ucuzunu buldum

Stok Kodu: 2641-402-34867

63,62 TL +kdv
Bugün kargoda
Kargo Bedava

  • Transmission properties: Category 6
  • Area of application: Up to 250 MHz, 1GBase-T
  • Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C
  • Suitable for installation in trunking, surface and flush mount
  • Cable installation via LSA stripes, color-coded as per EIA/TIA 568 A & B
  • Suitable for connection of installation cables - extension of cables, replacing of defect cable links
  • Integrated strain relief for installation cables
  • Suitable for cables with AWG 22-26 diameter
  • Housing material: ABS UL-94V-0
  • RJ45 female material: ABS UL 94V-0
  • RJ45 female contact: Tinned phosphor bronze, 0.5 µ gold-plated contact
  • RJ45 shielding: Tinned bronze
  • LSA termination clamp: Krone LSA+, UL 94V-0, zinc plated phosphor bronze
  • Conductor plate: FR4, UL 94V-0
  • Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
  • IDC wire size: 22 – 26 AWG solid and stranded conductor
  • Insulation resistance: > 500 MOhm
  • Contact resistance: < 20 MilliOhm
  • Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
